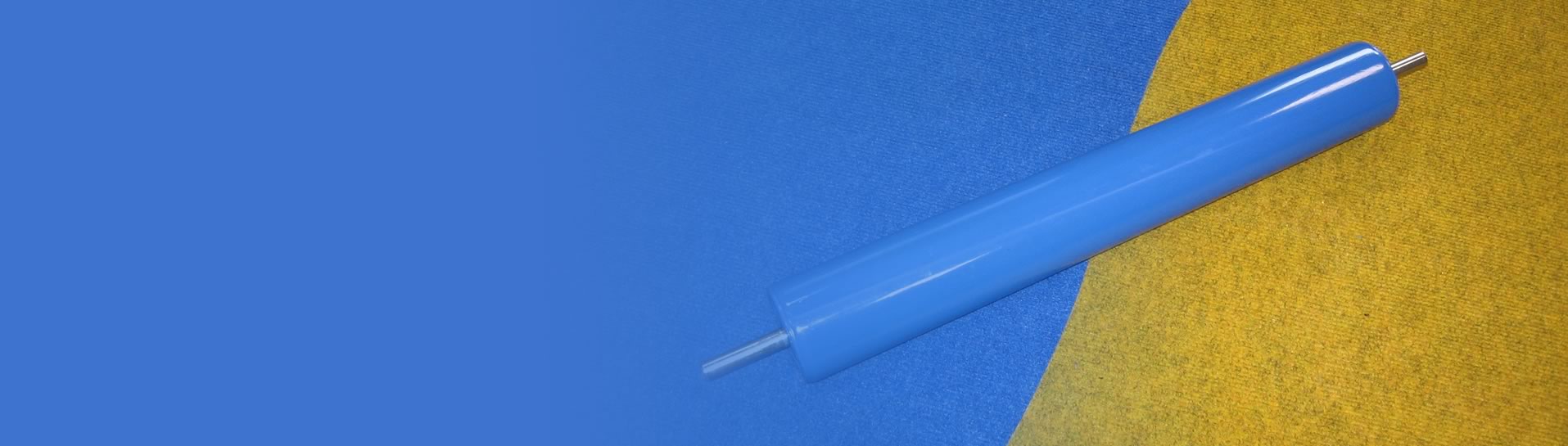

Steel Return Rollers

Abbey Return Rollers are used on the return belt and are manufactured to our patented design and construction.

Our steel return rollers are manufactured in 101.6mm, 127mm, 159mm and 168mm diameter with shaft diameters ranging from 22mm – 45mm as required.

All our return rollers are made to the abbey design and construction using heavy duty machined cast iron end covers, machined shafts, double rubber sealed for life 2RSC3 bearings and double lip rubber seals.

The shaft end detail is manufactured to type 1 design as standard (see our replacement roller order form or page 4 of our International Brochure Series 2000) and can also be manufactured to customers specific requirements.

Our return rollers are held in place at each end by our keyhole bracket which is bolted to the conveyor frame.
